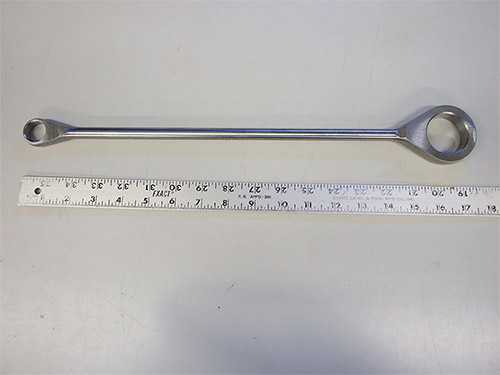

An aerospace industry client approached CT Hone, Inc. to I.D. hone 2 holes in a steel Pitchlink. The VAR 4340 steel Pitchlink was 15.750″ long, with 2 holes having an I.D. of .81355″ and 1.56355″. We were able to hold tightest tolerances of + .0005″ throughout the entire process, and achieve a microfinish of 63.
To learn more about this I.D. honing project, please see the details below. For more information about our other services please contact CT Hone, Inc.
Steel Pitchlink Project Highlights
- Product Name
-
I.D. Honing of a Steel Pitchlink
- Product Description
-
We had to hone 2 holes within this steel Pitchlink.
- Capabilities Applied/Processes
-
Horizontal I.D. Honing
- Equipment Used to Hone Part
-
Sunnen Horizontal Honing Machines & Tooling
- Overall Part Dimensions
-
I.D. of Honed Holes:
- .81355″
- 1.56355″
- Length: 15.750″
- Tightest Tolerances
-
+ .0005″
- Material of Component
-
VAR 4340 Steel
- Maximum Material Finish
-
63 Microfinish
- In Process Testing/Inspection Performed
-
- Dimensional inspection with Sunnen gages
- Surface finish inspection with Bendix profilometer
- Industry for Use
-
Aerospace
- Standards Met
-
- Customer supplied operation sheet
- 2D CAD drawing & specifications
